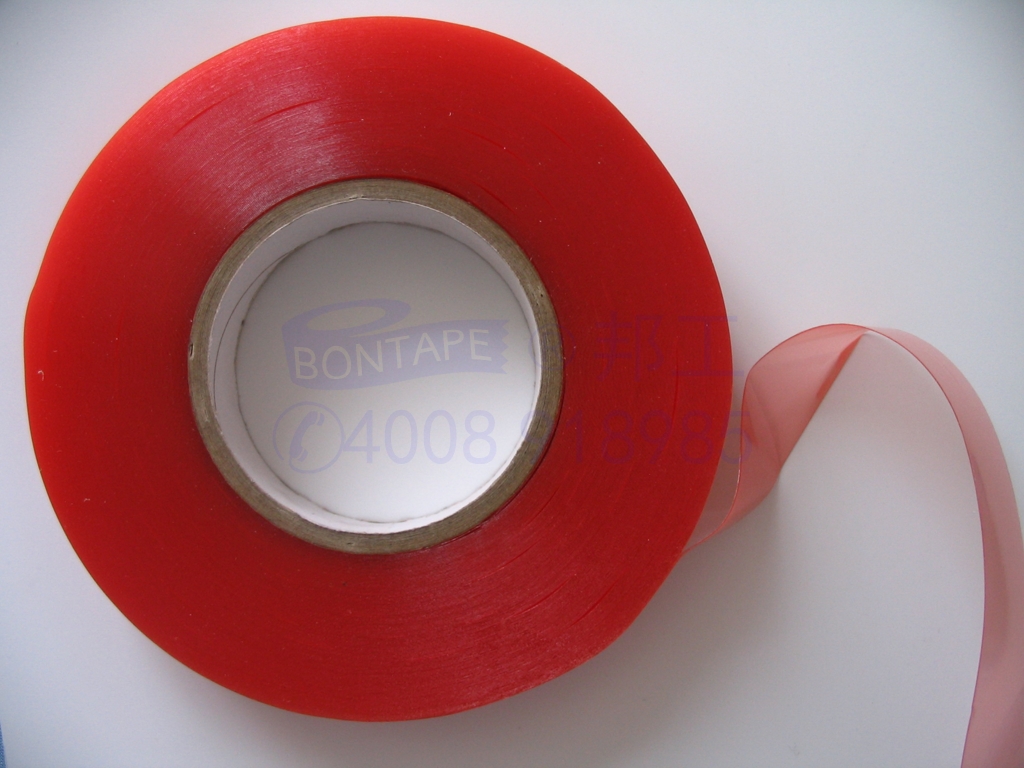

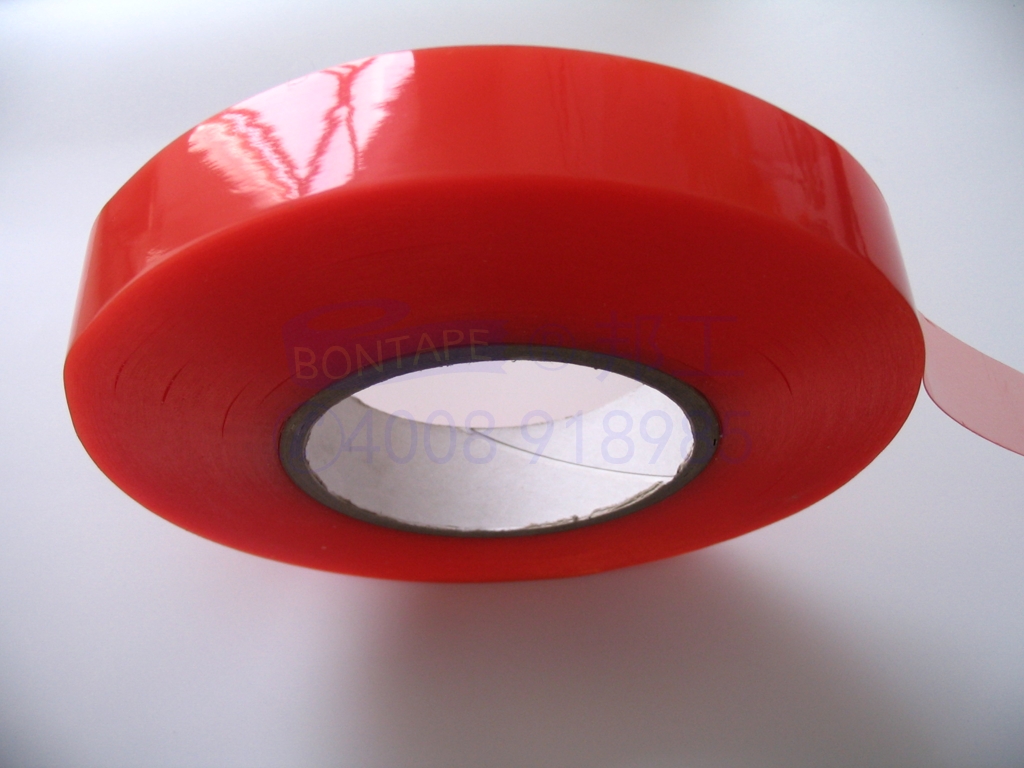

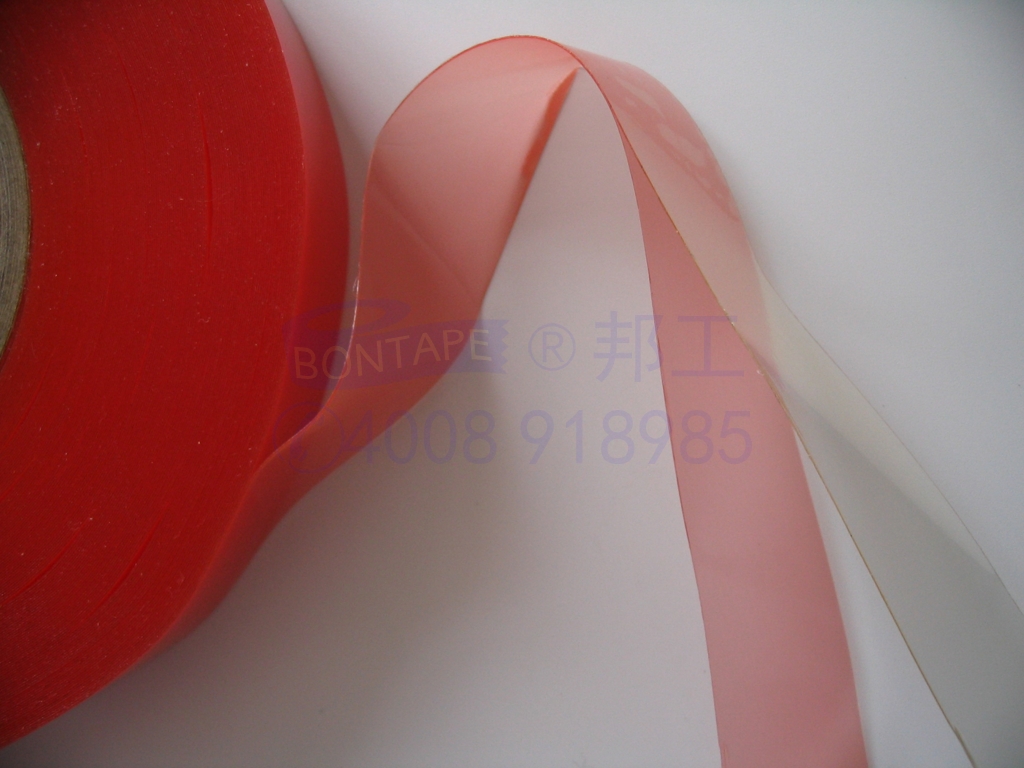

Heat Resistance Double-sided Insulating Tape
The heat resistance double-sides insulating tape has strong persistence adhesion, high initial tack, good weather resistance and voltage resistance. large amount of coating guarantees good adhesion to rough surface, it can firmly adhere laminated cardboard, dispensing paper, electrical composite film, knitted polyester tape and other insulation materials for transformers for a long time. Its short-term temperature resistance can reach 200 degrees.
Heat Resistance Double-sided Insulating Tape
The heat resistance double-sided insulating tape has strong persistence adhesion, high initial tack, good weather resistance and voltage resistance. large amount of coating guarantees good adhesion to rough surface, it can firmly adhere laminated cardboard, dispensing paper, electrical composite film, knitted polyester tape and other insulation materials for transformers for a long time. Its short-term temperature resistance can reach 200 degrees. Typical application of the strong double-sided insulating adhesive tape is sticking and fixing the various parts of power transformer, and bonding the insulation sleeve between primary and secondary of the power transformer.
Features:
- Heat resistance up to 200C
- B-Class insulation
- Voltage resistant
- Strong viscosity
Applications:
- Fixing the knitted polyester tape
- Fixing the laminated cardboard
- Bonding the insulation sleeve
- General use
Product details:
| Type number | Base material | Thickness | Peel adhesion | Tensile Strength |
|---|---|---|---|---|
| 6178 | pet | 0.20mm | 10N/10mm | 90N/10mm |
Power transformer tapes are mainly used in core, layer and final insulation of coils and transformers, phase and coil-end insulation. We can also find them in the sealing connection leads for final insulation, strengthening of edges in slot insulation and for slot insulation in general. Our power transformer tapes contain a variety materials for different purpose, such as fibre reinforced transformer tape, oil resistance blue self-adhesive tape, nomex paper insultion tape, double-sides tape with heat resistance, amorphous metal transformer tape. Oil-resistant tapes can resistant against most transformer oils including chlorinated oils. “transformer oil miscibility test” by the third party is very good. tapes are suitable for insulation wrapping of oil filled power transformer with little affects the dielectric loss and total hydrocarbon of transformer oil, and no hydrogen evolution.
