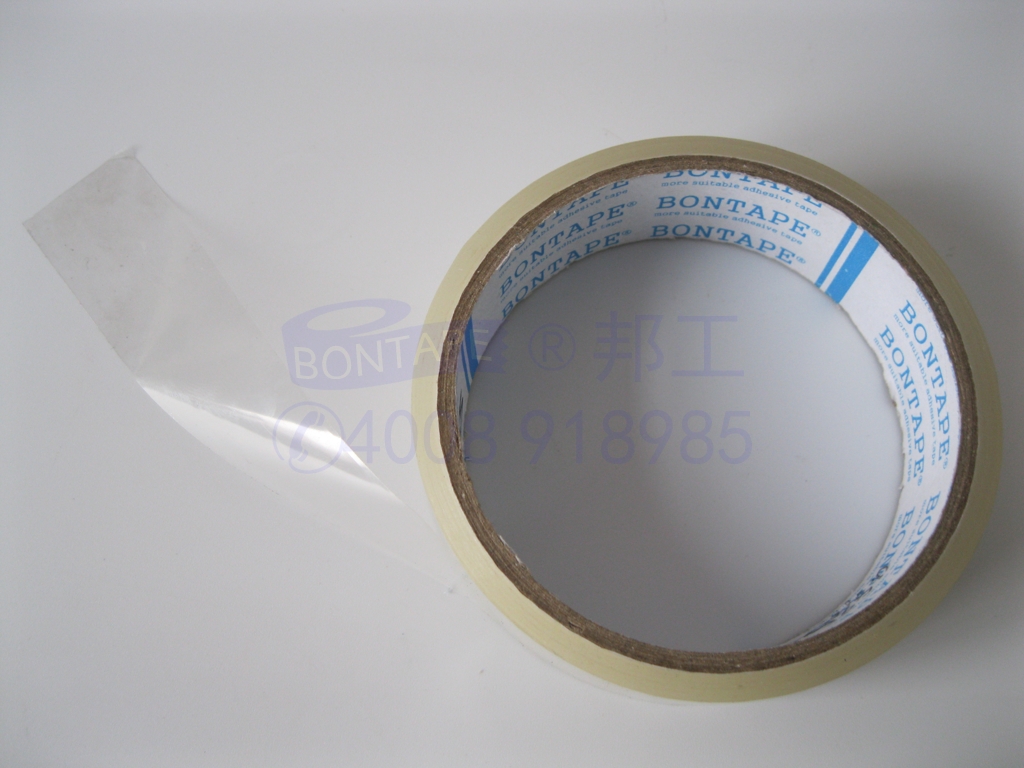

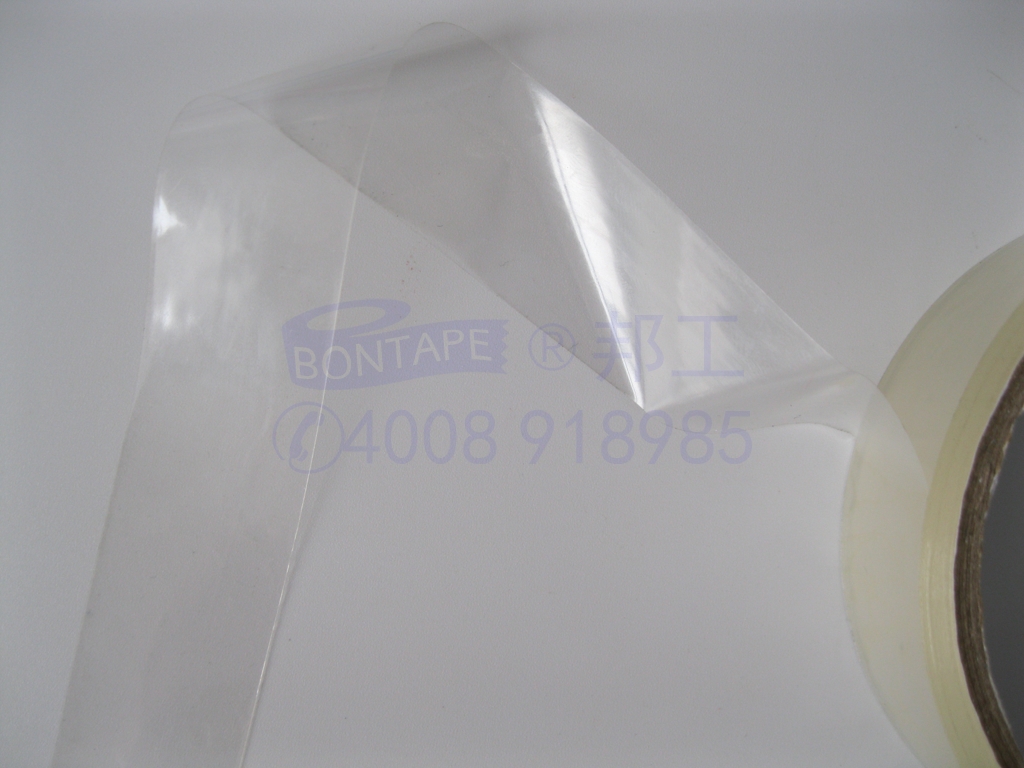

Amorphous Metal Transformer Tape
The transparent tape for amorphous alloy transformer with oil resistance is made of electrical polyester film, after special treatment of solvent resistance and high temperature resistance, has the characteristics of strong viscosity, high voltage resistance, oil immersion resistance and chemical corrosion resistance. It hardly affects the dielectric loss and total hydrocarbon of transformer oil, and has no hydrogen evolution.
Amorphous Metal Transformer Tape
Amorphous metal transformer tape with oil resistance is made of electrical polyester film, after special treatment of solvent resistance and high temperature resistance, has the characteristics of strong viscosity, high voltage resistance, oil immersion resistance and chemical corrosion resistance.Typical applications are include lead anchoring, banding of coils, amorphous core bundling insulation, strengthening of edges in slot insulation. It hardly affects the dielectric loss and total hydrocarbon of transformer oil, and has no hydrogen evolution. The insulating adhesive tape can also fix the insulation sleeve for isolating primary and secondary windings of dry-type transformer.
Features:
- Little effect of dielectric loss
- No hydrogen evolution
- High voltage resistant
- B-Class insulation
- Strong viscosity
Applications:

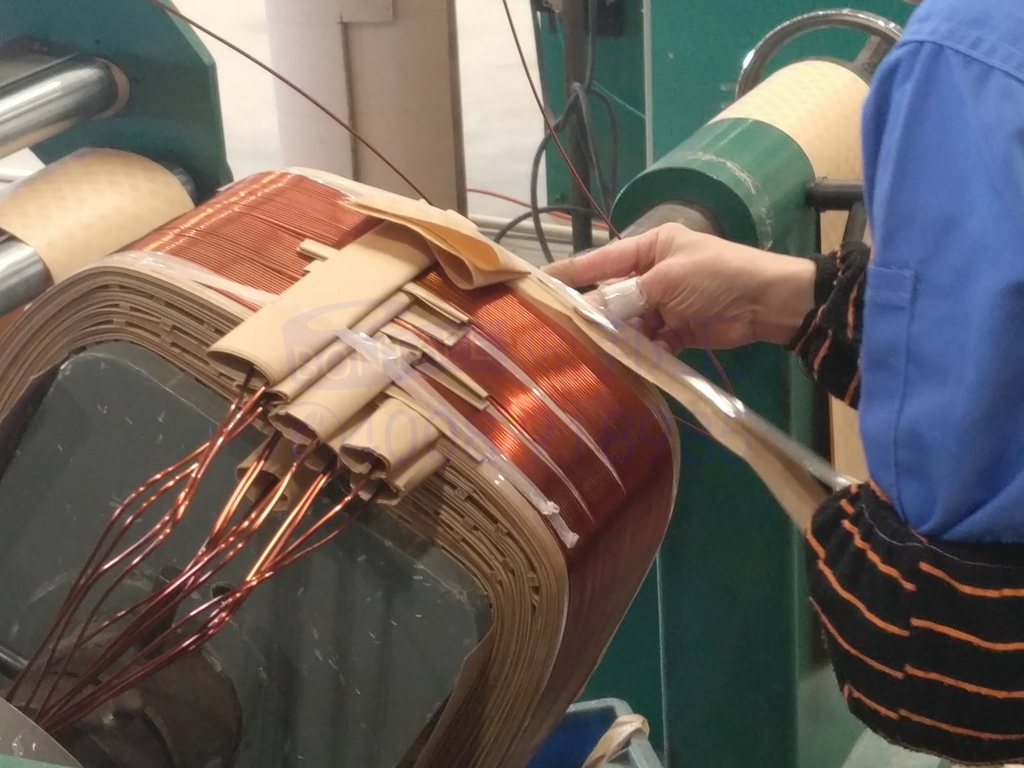

- Fixing of coil lead-out wire of transformer
- Coil insulation wrapping
- Inter-relay insulation
Product details:
| Type number | Base material | Thickness | Peel adhesion | Tensile Strength |
|---|---|---|---|---|
| 5197 | pet | 0.055mm | 5N/10mm | 60N/10mm |
Power transformer tapes are mainly used in core, layer and final insulation of coils and transformers, phase and coil-end insulation. We can also find them in the sealing connection leads for final insulation, strengthening of edges in slot insulation and for slot insulation in general. Our power transformer tapes contain a variety materials for different purpose, such as fibre reinforced transformer tape, oil resistance blue self-adhesive tape, nomex paper insultion tape, double-sides tape with heat resistance, amorphous metal transformer tape. Oil-resistant tapes can resistant against most transformer oils including chlorinated oils. “transformer oil miscibility test” by the third party is very good. tapes are suitable for insulation wrapping of oil filled power transformer with little affects the dielectric loss and total hydrocarbon of transformer oil, and no hydrogen evolution.
